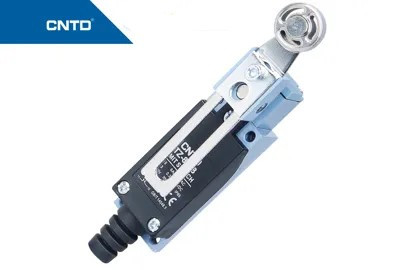

لیمیت سوئیچ (میکروسوئیچ) دوطرفه قابل تنظیم با قرقره فلزی CNTD TZ-8108
CNTD TZ-8108
برند:CNTD
توضیحات
مشخصات فنی
| Operation speed | 5mm-0.5m/s |
| Operating frequency | Electical: 30 operations/min |
| Contact resistance | 25mΩ max. (initial value） |
| Insulation resistance | 100mΩ min. （below 500VDC） |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non–current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G’S)
Malfunction: 300m/Sec2 (about 30G’S) |
| Ambient temperature | Using：-20~+70℃（With no icing） |
| Humidity | <95% RH |
| Electrical life | 500,000 operations above |
| Degree of protection | IP65 |
| Contact | 1NO+1NC |
جریان نامی:
|
Rated Voltage |
Noninductive Load (A) |
Inductive Load (A) |
||||||
|
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
|
125VAC 250VAC |
5 |
5 |
1.5 |
0.7 0.5 |
3 |
3 |
2 |
1 |
|
8VDC |
5 |
5 |
3 |
3 |
5 |
4 |
3 |
3 |
|
14VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
|
30VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
|
125VDC |
0.4 |
0.4 |
||||||
|
250VDC |
0.2 |
0.2 |
||||||
|
Inrush Current |
N.C: below 24A, N.O: below 12A |
|||||||
