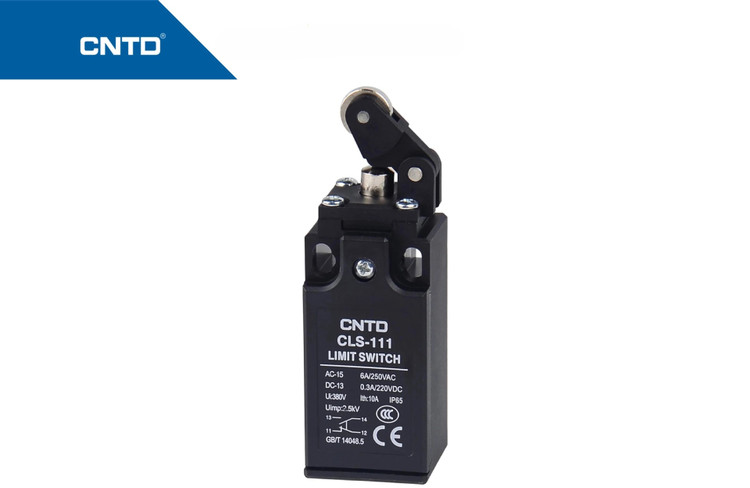

لیمیت سوییچ (میکروسوئیچ) فشاری یکطرفه در جهت چپ به راست بدنه باکالیت CNTD CLS-111
CNTD CLS-111
برند:CNTD
توضیحات
مشخصات فنی
|
Operation speed |
5mm-0.5m/s |
|
Operating frequency |
Electical: 30 operations/min |
|
Contact resistance |
25mΩ max. (initial value） |
|
Insulation resistance |
100mΩ min. （below 500VDC） |
|
Dielectric strength |
1500VAC, 50/60 Hz for 1 minute between current-carrying and non–current-carrying metal parts |
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non–current-carrying metal parts |
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
|
|
Vibration |
10-55Hz,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G’S) Malfunction: 300m/Sec2 (about 30G’S) |
|
Ambient temperature |
Using：-20~+70℃（With no icing） |
|
Humidity |
<95% RH |
|
Electrical life |
300,000 operations above |
|
Protection level |
IP66 |
|
Contact |
1NO+1NC |
جریان نامی
|
Rated Voltage |
Noninductive Load (A) |
Inductive Load (A) |
||||||
|
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
|
125VAC 250VAC |
5 |
5 |
1.5 |
0.7 0.5
|
3 |
3 |
2 |
1 |
|
14VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
|
30VDC |
5 |
5 |
3 |
3 |
4 |
4 |
3 |
3 |
|
125VDC |
0.4 |
0.4 |
||||||
|
250VDC |
0.2 |
0.2 |
||||||
|
Inrush Current |
N.C: below 24A, N.O: below 12A |
|||||||
